Screw-and-barrel

🔧 Main Components

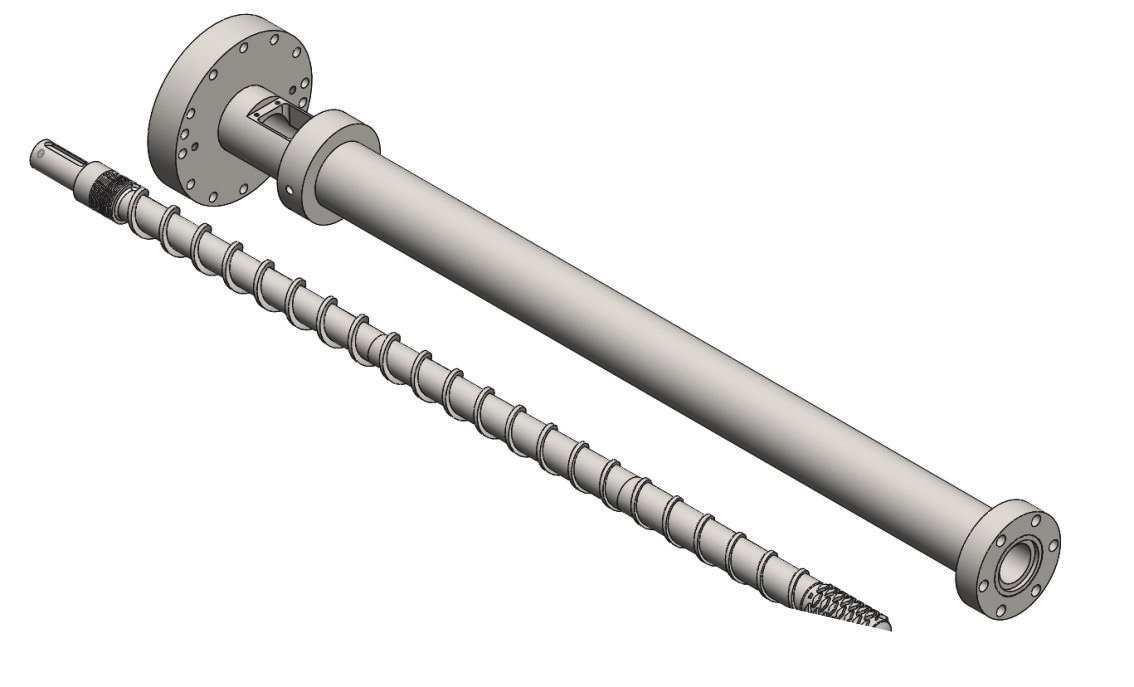

1. Screw (Auger) – Left Side

• The long, helical shaft is a screw (auger).
• It has continuous spiral flights (threads) along its length.
• The tip appears specially machined, possibly for mixing, cutting, or material discharge.

2. Barrel – Right Side

• The cylindrical hollow tube is the barrel.
• It encloses the screw during operation.
• Both ends have flanges with bolt holes, used for mounting and alignment in a machine.

⚙️ Functional Design

• The screw rotates inside the barrel.
• As it rotates, the helical threads:
  • Move material forward
  • Compress and mix material
  • Sometimes heat and melt material (in plastic or rubber processing)
• The cutaway section in the barrel shows the internal space where the screw operates.

🧱 Key Features

• Helical Flights: Ensure continuous movement of material.
• Variable Geometry: The screw may have different sections (feed, compression, metering).
• Flanged Ends: Allow secure attachment to motors, gearboxes, or other machine parts.
• Precision Machining: Ensures tight clearance between screw and barrel for efficiency.

🏭 Typical Applications

This type of assembly is widely used in:

• Plastic extrusion machines
• Injection molding machines
• Food processing equipment
• Chemical and polymer industries

🧠 Working Principle (Simple)

1. Material is fed into one end.
2. The rotating screw pushes it forward.
3. Material gets compressed, mixed, and possibly heated.
4. Processed material exits from the other end.
